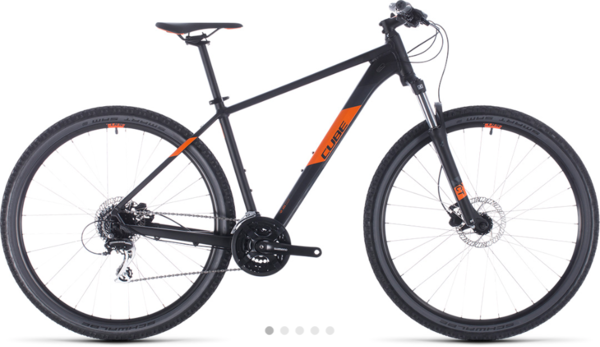

Cube Aim Pro HT MTB

Cube Aim Pro HT MTB
  • Color: Green
  • Color: Black/Orange
This item is currently not available.

Details

Aspiring trail explorers, your search is over: The Aim Pro is the affordable, capable bike you need to fuel your burgeoning off-road passion. Combining a light, stiff and nimble-handling frame with a selection of easy-to-use, reliable components including Tektro hydraulic disc brakes and a comfortable suspension fork, it's the ideal choice for exploring further afield when you've run out of road. But just because it's affordable, that doesn't mean we've skimped on the details. From internal cable routing for clean looks and long-lasting smooth, reliable gear shifting with minimal maintenance to hidden rack and fender mounts for quick and easy upgrades, every detail is designed to make the Aim Pro an easy bike to live with. And, as you'd expect, our Size Split system makes it easy to find the right frame and wheel size combination to suit any rider. Let the adventures begin!

Specs

Frame Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Fork SR Suntour XCT Disc, 100mm
Headset CUBE FPH863, Semi-Integrated
Rims/Wheels CUBE SD20, 32H, Disc
Hubs CUBE Alloy Light, 6-Bolt
Tires Schwalbe Smart Sam, Active, 2.1
Crankset Shimano FC-TY501, 42x34x24T, 170mm
Chain KMC CU8.3
Front Derailleur Shimano FD-TY700, Downswing, 31.8mm Clamp
Rear Derailleur Shimano RD-M360-SGS, 8-Speed
Rear Cogs Shimano CS-HG200, 12-32T
Shifters Shimano SL-M315, Rapidfire-Plus
Handlebars CUBE Rise Trail Bar, 680mm
Tape/Grips CUBE Performance Grip
Stem CUBE Performance Stem, 31.8mm
Brakes Tektro HD-M275, Hydr. Disc Brake (160/160)
Pedals CUBE PP MTB
Saddle Natural Fit Venec Lite
Seat Post CUBE Performance Post, 27.2mm
Seat Binder CUBE Varioclose, 31.8mm
Accessories & Extras https://www.cube.eu/en/2020/bikes/mountainbike/hardtail/aim/cube-aim-pro-greenniridium-2020/
Weight 14,3 kg

* Subject to change without notice.

Part Numbers

Option MPN
Green / 27.5 16" 30131016
Green / 29 17" 30131017
Green / 29 19" 30131019
Black/Orange / 27.5 16" 30130016
Black/Orange / 27.5 18" 30130018
Black/Orange / 29 17" 30130017
Black/Orange / 29 19" 30130019
Black/Orange / 29 21" 30130021
