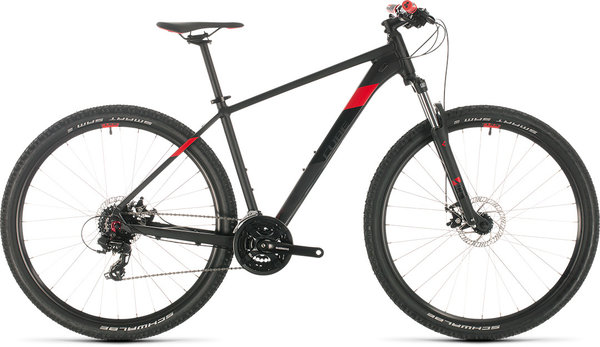

Cube Bikes Aim

Cube Bikes Aim
  • Color: Black 'n' Red
  • Color: Blue 'n' Green
Please select options
Sorry, this item is currently not available. Email us to get a better idea of when you can get it, or to inquire about an possible alternative. We will be happy to figure it out!


If you're just starting out in the world of off-pavement adventuring, you'll need a bike you can rely on—a companion that'll be with you over every pebble, rock, and root, no matter where your curiosity takes you. That's why we designed the Aim, using our expertise in aluminum frame building to create a bike that's perfectly suited to the job. You're assured a comfortable ride and safe, intuitive handling thanks to our Agile Ride Geometry and light, strong Aluminum Lite frame.

Fitting fenders or a rack is quick and easy thanks to our cunningly hidden mounting system. Internal cable routing minimizes maintenance and complements the Aim's clean looks and, of course, we selected reliable components to keep you riding rather than fiddling with adjustments. The Suntour fork adds comfort and control over the bumps, easy-shifting Shimano gears give you the confidence to tackle any hill with ease, and powerful Tektro mechanical disc brakes mean you're always in control. The result is a bike that'll inspire you to explore, wherever the trail leads you. And with our Size Split system, you're sure to find the Aim to fit you perfectly.


Frame Aluminum Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Fork SR Suntour XCE, 100mm
Headset CUBE FPH863, Semi-Integrated
Rims/Wheels CUBE SD20, 32H, Disc
Hubs CUBE Alloy Light, 6-Bolt
Tires Schwalbe Smart Sam, Active, 2.1
Crankset Shimano FC-TY501, 170mm
Chainrings 42x34x24T
Chain KMC CU8.3
Front Derailleur Shimano FD-TY700-TS6, Downswing, 31.8mm Clamp
Rear Derailleur Shimano RD-TX800, 8-Speed
Cassette/Rear Cogs Shimano CS-HG200, 12-32T
Shifters Shimano ST-TX800, EZ Fire Plus
Handlebars CUBE Rise Trail Bar, 680mm
Tape/Grips CUBE Performance Grip
Stem CUBE Performance Stem, 31.8mm
Brakes Tektro MD-280, Mech. Disc Brake
Saddle Natural Fit Venec Lite
Seat Post CUBE Performance Post, 27.2mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black 'n' Red / 14-inch / 27.5-inch 04054571241085 30110014
Black 'n' Red / 16-inch / 27.5-inch 04054571241092 30110016
Black 'n' Red / 17-inch / 29-inch 04054571241108 30110017
Black 'n' Red / 18-inch / 27.5-inch 04054571241115 30110018
Black 'n' Red / 19-inch / 29-inch 04054571241122 30110019
Black 'n' Red / 21-inch / 29-inch 04054571241139 30110021
Blue 'n' Green / 14-inch / 27.5-inch 04054571241146 30111014
Blue 'n' Green / 16-inch / 27.5-inch 04054571241153 30111016
Blue 'n' Green / 17-inch / 29-inch 04054571241160 30111017
Blue 'n' Green / 18-inch / 27.5-inch 04054571241177 30111018
Blue 'n' Green / 19-inch / 29-inch 04054571241184 30111019
Blue 'n' Green / 21-inch / 29-inch 04054571241191 30111021
