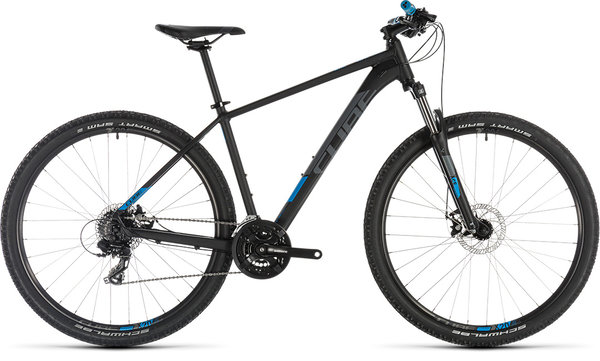

Cube Aim Disc HT MTB

Cube Aim Disc HT MTB
Please select options


Fat-tyre adventures begin with a bike that you can rely on - a companion that'll be with you over every pebble, rock and root, no matter where you explore. We built the Aim with this in mind, using our expertise in aluminium frame building to create a bike with a comfortable ride and intuitive, safe handling. New for 2019, we've refined the frame design so that fitting fenders or a rack is quicker, easier, neater and more secure. Reliable components include a Suntour suspension fork and powerful mechanical disc brakes. The result is a bike that'll inspire you to explore, wherever the trail leads you. And with our Size Split system, there's a frame size to suit every rider.


Frame Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Fork SR Suntour XCE, 100mm
Rims/Wheels CUBE SD20, 32H, Disc, CUBE Alloy Light, 6-Bolt hubs
Tires Schwalbe Smart Sam, Active, 2.1
Crankset Shimano FC-TY501 170mm
Chainwheel 42x34x24T Shimano
Front Derailleur Shimano FD-TY700-TS6, Downswing, 31.8mm Clamp
Rear Derailleur Shimano RD-TX800, 8-Speed
Rear Cogs Shimano CS-HG200, 12-32T 8-Speed
Shifters Shimano ST-TX800, EZ Fire Plus
Brake Levers Shimano ST-TX800
Brakes Tektro MD-280, Mech. Disc Brake

* Subject to change without notice.

Part Numbers

Option MPN
14" (27.5) 20110014
16" (27.5) 20110016
